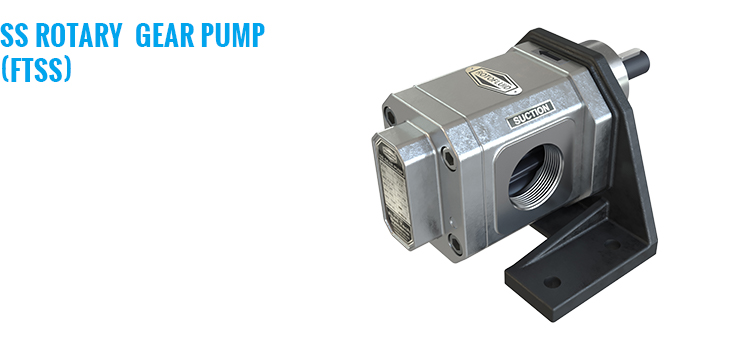

SS Rotary Gear Pump (FTSS)

  • Home
  • |
  • Rotary Twin Gear Pump (FTRN/FTRB/FTRX)
post

Bottle Filling Gear Pump, and Stainless Steel Gear Pump

Our range of products includes stainless steel gear pump, SS 316 gear pump, stainless steel dairy pump, SS rotary gear pump, and positive displacement SS gear pump.

Rotofluidpumps is a Leading Manufacturer and Supplier of Stainless Steel Gear Pump, SS 316 Gear Pump, and SS Rotary Gear Pump in India. it is widely used for transfer of Corrosive Chemicals & Viscous Liquids.

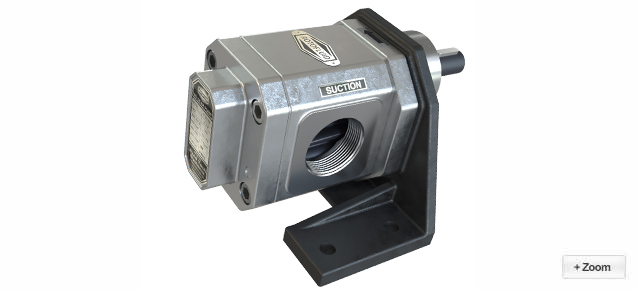

Fluid Tech Systems offer“ROTOFLUID” brand gear pump Model“FTSS” (SS Rotary Gear Pump, Stainless Steel Gear Pump) which is self priming, foot mounting type positive displacement rotary gear pump. Model “FTSS” having all Stainless Steel (SS-316) in three piece construction with investment cast. Due to three piece construction, it can be easily cleanable and maintainable that is why it is highly used in all kind of food industries. These pumps have SS-316 Gear and shaft that are nitrated to give long life and trouble free performance. The shaft is supported on self lubricating type Teflon coated DU Bushes and the sealing is done with Teflon based “GFO” pack sealant and viton oil seal. The right angle mounting brackets facilitates foot mounting of the pump on base plate with Electric Motor of appropriate ratings. These pumps have sturdy design and construction for long trouble free service.

The suction and delivery connection are available in 1/4" to 3" size. These pumps can be operated up to pressure of 10 kg/cm² with 8 LPM to 500 LPM flow capacity and has suction lift of 1m to 5m at rated speed of 1440 RPM. These pumps are designed up to maximum Viscosity to 1,00,000 SSU and maximum temperature up to 200ºc.

SS Rotary Gear Pump Material of Construction

Part Material For FTSS
Pump Body CF8M [SS-316]
Front Cover CF8M [SS-316]
Back Cover CF8M [SS-316]
Gland Cover CF8M [SS-316]
Packing Teflon Sheet
Sealing "GFO" Pack Teflon/ Mech. Seal/ Viton oil seal
Bush Bearings Teflon Coated "DU"
Mounting Bracket C.I.Gr.-20 IS 210
Dom Nut AISI [SS-316]
Rotor/Stator Shaft AISI [SS-316]
R.H. & L.H. Gear AISI [SS-316]
Key For Coupling SS-304

SS Rotary Gear Pump Technical Specification

Model Suction & Delivery Size Capacity at 1440 RPM
LPM US GPM M³/hr
FTSS - 025 1/4" x 1/4" 8 2.1 0.5
FTSS - 040 3/8" x 3/8" 15 3.9 0.9
FTSS - 050 1/2" x 1/2" 25 6.6 1.5
FTSS - 075 3/4 x 3/4" 30 7.9 1.8
FTSS - 100 1" x 1" 50 13.2 3.0
FTSS - 125 1 ¼" x 1 ¼" 100 26.4 6.0
FTSS - 150 1 ½" x 1 ½" 125 33.0 7.5
FTSS - 200 2" x 2" 200 52.8 12.0
FTSS - 250 2 ½" x 2 ½" 300 79.2 18.0
FTSS - 300 3" x 3" 500 132.0 30.0

SS Rotary Gear Pump Features

  • Construction is in three piece so easily cleanable and maintainable.
  • PTFE coated DU bush for smooth running and dry bearing condition.
  • Self priming pump
  • Single helical gear design.
  • Optionally available in double helical gear design.
  • Bi-direction positive displacement pump.
  • Corrosion prevent pump

SS Rotary Gear Pump Application

  • Food product like Ghee, Butter, Pulp, Vegetable sauce.
  • Pharmaceutical industries.
  • Cosmetic industries.
  • Dyes and Resins.
  • Chemical industries for corrosive viscose chemical.
  • Dyeing and Printing house.
  • Special chemical and Acid industries.
post

Bottle Filling Gear Pump,and Stainless Steel Gear Pump

Our range of products includes stainless steel gear pump, SS 316 gear pump, stainless steel dairy pump, SS rotary gear pump, and positive displacement SS gear pump.

Rotofluidpumps is a Leading Manufacturer and Supplier of Stainless Steel Gear Pump, SS 316 Gear Pump, and SS Rotary Gear Pump in India. it is widely used for transfer of Corrosive Chemicals & Viscous Liquids.

Fluid Tech Systems offer “ROTOFLUID” brand gear pump Model “FTSS” (SS Rotary Gear Pump, Stainless Steel Gear Pump) which is self priming, foot mounting type positive displacement rotary gear pump. Model “FTSS” having all Stainless Steel (SS-316) in three piece construction with investment cast.Due to three piece construction, it can be easily cleanable and maintainable that is why it is highly used in all kind of food industries. These pumps have SS-316 Gear and shaft that are nitrated to give long life and trouble free performance. The shaft is supported on self lubricating type Teflon coated DU Bushes and the sealing is done with Teflon based “GFO” pack sealant which gives zero leakage. The right angle mounting brackets facilitates foot mounting of the pump on base plate with Electric Motor of appropriate ratings. These pumps have sturdy design and construction for long trouble free service.

The suction and delivery connection are available in 1/4" to 2 ½" size. These pumps can be operated up to pressure of 10 kg/cm² with 8.33 LPM to 300 LPM flow capacity and has suction lift of 1m to 5m at rated speed of 1440 RPM. These pumps are designed up to maximum Viscosity to 1,00,000 SSU and maximum temperature up to 200ºc.

SS Rotary Gear Pump Material of Construction

Part Material For FTSS
Pump Body CF8M [SS-316]
Front Cover CF8M [SS-316]
Back Cover CF8M [SS-316]
Gland Cover CF8M [SS-316]
Packing Teflon Sheet
Sealing "GFO" Pack Teflon/ Mech. Seal
Bush Bearings Teflon Coated "DU"
Mounting Bracket C.I.Gr.-20 IS 210
Dom Nut AISI [SS-316]
Rotor/Stator Shaft AISI [SS-316]
R.H. & L.H. Gear AISI [SS-316]
Key For Coupling SS-304

SS Rotary Gear Pump Technical Specification

Model Suction & Delivery Size Capacity at 1440 RPM
LPM US GPM M³/hr
FTSS - 025 1/4" x 1/4" 8 2.1 0.5
FTSS - 040 3/8" x 3/8" 15 3.9 0.9
FTSS - 050 1/2" x 1/2" 25 6.6 1.5
FTSS - 075 3/4 x 3/4" 30 7.9 1.8
FTSS - 100 1" x 1" 50 13.2 3.0
FTSS - 125 1 ¼" x 1 ¼" 100 26.4 6.0
FTSS - 150 1 ½" x 1 ½" 125 33.0 7.5
FTSS - 200 2" x 2" 200 52.8 12.0
FTSS - 250 2 ½" x 2 ½" 300 79.2 18.0

SS Rotary Gear Pump Features

  • Construction is in three piece so easily cleanable and maintainable.
  • PTFE coated DU bush for smooth running and dry bearing condition.
  • Self priming pump
  • Single helical gear design.
  • Optionally available in double helical gear design.
  • Bi-direction positive displacement pump.
  • Corrosion prevent pump

SS Rotary Gear Pump Application

  • Food product like Ghee, Butter, Pulp, Vegetable sauce.
  • Pharmaceutical industries.
  • Cosmetic industries.
  • Dyes and Resins.
  • Chemical industries for corrosive viscose chemical.
  • Dyeing and Printing house.
  • Special chemical and Acid industries.
