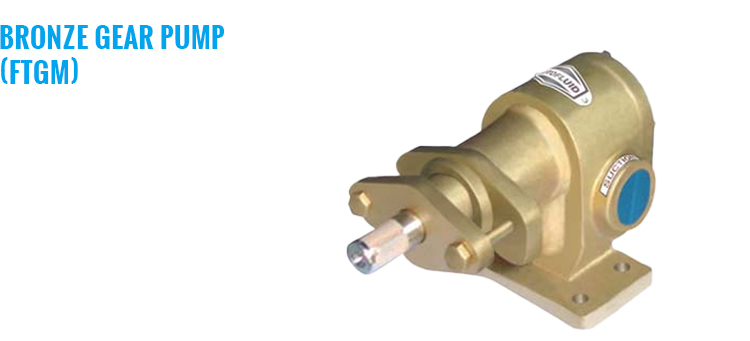

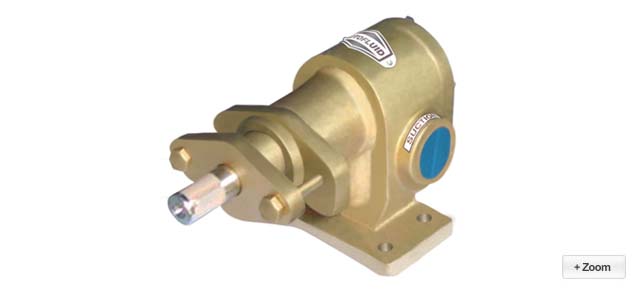

Bronze Gear Pump, Gunmetal Gear Pump
Fluid Tech Systems offer “ROTOFLUID” brand gear pump Model “FTGM” (Bronze Gear Pump, Gunmetal Gear Pump, Colour Gear Pump, Paint Transfer Gear Pump, Textile Machine Gear Pump) which is specially design for paints. Model “FTGM” having bronze cast construction of pump casing and SS 316 construction of gear & shaft, that are nitrated to give long life and trouble free performance. Construction of gear is double helical which prevent axial load and side thrust. The sealing is done with “GFO” pack Teflon which gives zero leakages
The suction & delivery connection are available in 1" only. These pump operate up to maximum pressure of 10 kg/cm² with maximum temperature up to 200°c.
Material of Construction
| Part | Material For FTGM |
| Pump Body | 85555 Gunmetal Cast |
| Back Cover | 85555 Gunmetal Cast |
| Gland Cover | 85555 Gunmetal Cast |
| Rotor/Stator Shaft | SS - 316 |
| Gear | SS - 316 |
| Bush | Non Ferrous Sintered Bronze |
| Sealing | “GFO” Pack Teflon |
| Key | EN - 8 |
| Hex - Bolt | Mild Steel |
Features
- Self Priming
- Gear design ensures uniform load distribution.
- Double helical design prevent axial load and side thrust.
- Bi-directional pump
Application
- Paints industries
- Colours loading and unloading.
