External Gear Pumps, Loading Unloading Gear Pump, Bitumen Transfer Pumps manufacturer supplier expoter

External Gear Pumps , Bitumen Transfer Pumps

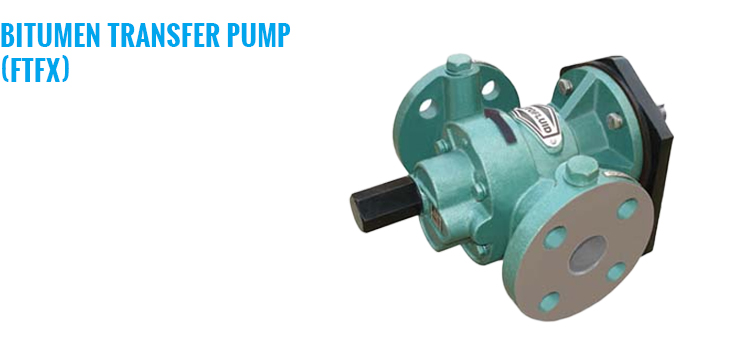

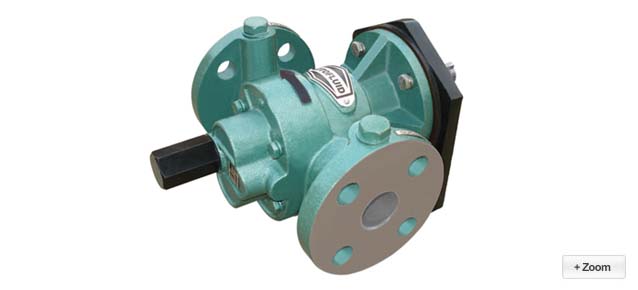

Fluid Tech Systems offer “ROTOFLUID” brand gear pump Model “FTFX” (Bitumen Transfer Pumps, External Gear Pumps) which is most efficient and economic range of flange and foot mounting type positive displacement rotary gear pump. Model “FTFX” having Single helical shrink fitted gear pair and hardened and grind finished shaft.Ultra bronze sintered bushes ensured smooth running. It is perfectly designed and construction which increase life of pump and performance of pump.

Model “FTFX” is very similar construction like Model “FTX” but the changes are at end. This pump having flange at the end of suction and delivery which is available only in ¾” size. The flange is specially designed for cleaning pump’s inside casing without open pump.
Material of Construction
Part Material For FTFX
Body IS.210 FG 220 C.I. Grade
Back Cover IS.210 FG 220 C.I. Grade
R.H. & L.H. Gear EN-8
Rotor/Stator Shaft EN-19
Bearing[Bushes] Non Ferrous Sintered Bronze
Sealing “GFO” Pack Teflon
R.V. Cap Aluminum
Key for coupling EN-8
Features
Compact and Simple design.
Foot and Flange mounting options.
Self priming pump.
Bi-directional positive displacement pump.
With relief valve design.
Optional high temperature version up to 200º c.
Flange end construction at suction & Delivery.
Low cost.
Application
Widely used in Bitumen Application
Bitumen loading and unloading.

FTFX Model Known as :
External Gear Pumps
Loading Unloading Gear Pump
Bitumen Transfer Pumps
