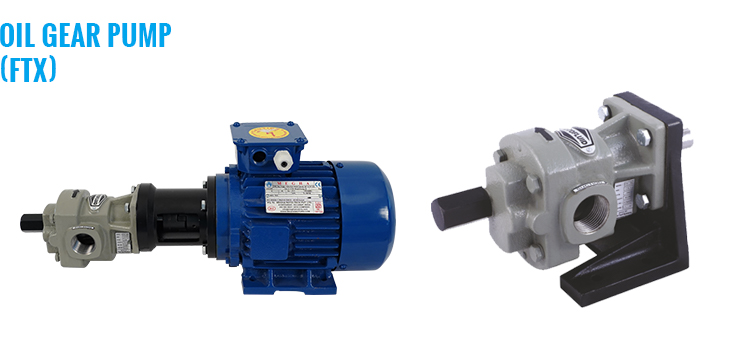

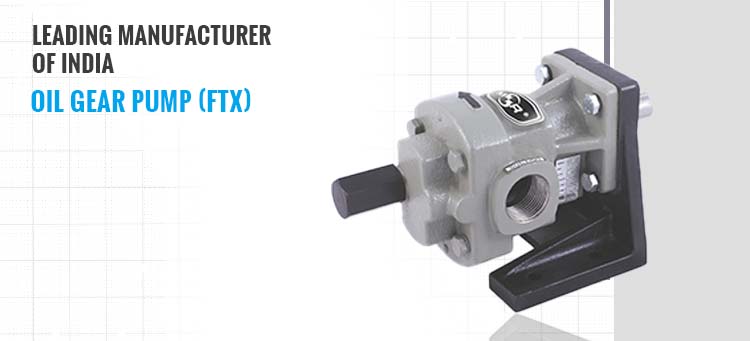

Lubrication Oil Gear Pump

Fluid Tech Systems offer “ROTOFLUID” brand gear pump Model “FTX” (Gear Pump, Lubrication Oil Gear Pump) which is most efficient and economic range of flange and foot mounting type positive displacement rotary gear pump. Model “FTX” having Single helical shrink fitted gear pair and hardened and grind finished shaft. Ultra bronze sintered bushes ensured smooth running. It is perfectly designed and construction which increase life of pump and performance of pump.

The suction and delivery connections are available in 1/4" to 2 ½" size. These pumps can be operated up to pressure of 10 kg/cm² with 2.5 LPM to 350 LPM flow capacity. These pumps are designed to run at 1440 RPM and suitable liquid up to viscosity of 1,00,000 SSU and maximum temperature up to 200ºc.

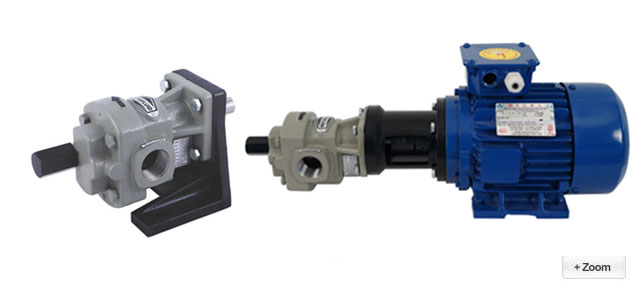

FTX Monoblock pump

Simple and compact designs of Monoblock pumps are available in this model.

Monoblock version is very easy to portable one to another place and it does not required to align every time when coupled with electric motor. Monoblock version save space and reduces down time.

Material of Construction

Part Material For Standard Material For H.T.
Body IS.210 FG 220 C.I. Grade IS.210 FG 220 C.I. Grade
Back Cover IS.210 FG 220 C.I. Grade IS.210 FG 220 C.I. Grade
R.H. & L.H. Gear EN-8 EN-24 [H. Nitrated]
Rotor/Stator Shaft EN-19 EN-19
Bearing[Bushes] Non Ferrous Sintered Bronze Non Ferrous Sintered Bronze
Sealing Neoprene oil Seal “GFO” Pack Teflon
R.V. Cap Aluminum Aluminum
Key for coupling EN-8 EN-8

Technical Specification

Model Suction & Delivery Size Capacity at 1440 RPM
LPM US GPM M³/hr
FTX - 025 1/4" x 1/4" 2.5 0.6 0.1
5 1.3 0.3
FTX - 050 1/2" x 1/2" 10 2.6 0.6
15 4.0 0.9
FTX - 075 3/4" x 3/4" 20 5.3 1.2
25 6.6 1.5
FTX - 100 1" x 1" 35 9.2 2.1
50 13.2 3.0
FTX - 125 1½" x 1½" 60 15.85 3.6
75 15.81 4.5
FTX - 150 1½" x 1½" 100 26.41 6.0
120 31.70 7.2
FTX - 200 2" x 2" 150 39.62 9.0
200 52.83 12.0
225 59.44 13.0
FTX - 250 2 ½" x 2 ½" 300 79.25 18.0
350 92.46 21.0

Features

  • Compact and Simple design.
  • Foot and Flange mounting options.
  • Self priming pump.
  • Single helical gear design.
  • Optionally available in double helical gear design
  • Bi-directional positive displacement pump.
  • With relief valve design.
  • Optional high temperature version up to 200º c.

Application

  • Oil filtration systems.
  • Pumping and Heating systems.
  • Cleaning and Cooling systems.
  • Centralize lubrication systems.
  • Petroleum industries.
  • Machine tools industries.
post

Lubrication Oil Gear Pump

Fluid Tech Systems offer “ROTOFLUID” brand gear pump Model “FTX” (Gear Pump, Lubrication Oil Gear Pump) which is most efficient and economic range of flange and foot mounting type positive displacement rotary gear pump. Model “FTX” having Single helical shrink fitted gear pair and hardened and grind finished shaft. Ultra bronze sintered bushes ensured smooth running. It is perfectly designed and construction which increase life of pump and performance of pump.

The suction and delivery connections are available in 1/4" to 2 ½" size. These pumps can be operated up to pressure of 10 kg/cm² with 2.5 LPM to 350 LPM flow capacity. These pumps are designed to run at 1440 RPM and suitable liquid up to viscosity of 1,00,000 SSU and maximum temperature up to 200ºc.

FTX Monoblock pump

Simple and compact designs of Monoblock pumps are available in this model.

Monoblock version is very easy to portable one to another place and it does not required to align every time when coupled with electric motor. Monoblock version save space and reduces down time.

Material of Construction

Part Material For Standard Material For H.T.
Body IS.210 FG 220 C.I. Grade IS.210 FG 220 C.I. Grade
Back Cover IS.210 FG 220 C.I. Grade IS.210 FG 220 C.I. Grade
R.H. & L.H. Gear EN-8 EN-24 [H. Nitrated]
Rotor/Stator Shaft EN-19 EN-19
Bearing[Bushes] Non Ferrous Sintered Bronze Non Ferrous Sintered Bronze
Sealing Neoprene oil Seal “GFO” Pack Teflon
R.V. Cap Aluminum Aluminum
Key for coupling EN-8 EN-8

Technical Specification

Model Suction & Delivery Size Capacity at 1440 RPM
LPM US GPM M³/hr
FTX - 025 1/4" x 1/4" 2.5 0.6 0.1
FTX - 025 5 1.3 0.3
FTX - 050 1/2" x 1/2" 10 2.6 0.6
FTX - 050 15 4.0 0.9
FTX - 075 3/4" x 3/4" 20 5.3 1.2
FTX - 075 25 6.6 1.5
FTX - 100 1" x 1" 35 9.2 2.1
FTX - 100 50 13.2 3.0
FTX - 125 1¼" x 1 ¼" 75 19.8 4.5
FTX - 150 1½" x 1½" 110 29.0 6.6
FTX - 200 2" x 2" 225 59.4 13.5
FTX - 250 2 ½" x 2 ½" 350 92.5 21.0

Features

  • Compact and Simple design.
  • Foot and Flange mounting options.
  • Self priming pump.
  • Single helical gear design.
  • Optionally available in double helical gear design
  • Bi-directional positive displacement pump.
  • With relief valve design.
  • Optional high temperature version up to 200º c.

Application

  • Oil filtration systems.
  • Pumping and Heating systems.
  • Cleaning and Cooling systems.
  • Centralize lubrication systems.
  • Petroleum industries.
  • Machine tools industries.
