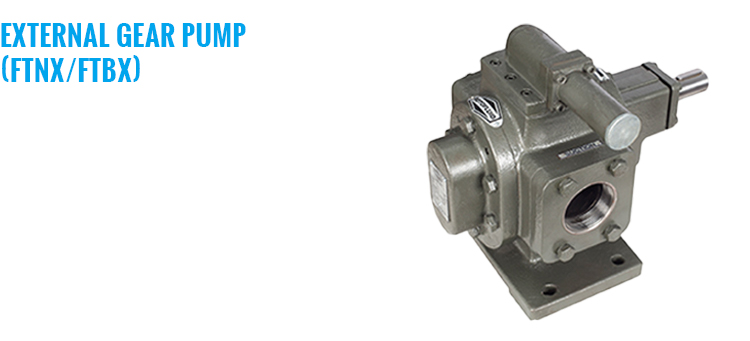

External Gear Pump (FTNX/FTBX)

  • Home
  • |
  • External Gear Pump (FTNX/FTBX)
post

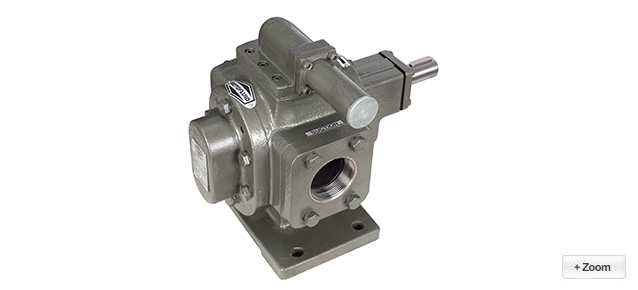

External Gear Pump | Viscous Liquid Gear Pump

Fluid Tech Systems offer “ROTOFLUID” brand External Gear Pump Model “FTNX/FTBX” (Rotary Pump - Viscous Liquid Gear Pump) which is heavy duty flange and foot mounting type positive displacement rotary gear pump. Model “FTNX/FTBX” is modified version of Model “FTRN/FTRB” to achieve high pressure. These pumps having doubled helical finished gears and hardened & ground shafts. Due to double helical gear it prevent axial load and side thrust which help to increase life and performance of pump. Model “FTBX” is a bush bearing type pump which can be used for viscous liquid having sufficient lubricating value for intermittent duty; however for continuous duty pump have needle roller bearing in Model “FTNX” and it will be selected for liquid having low viscosity, power lubricating values.

In these pumps size ½" to 2" are provided with thread at end of suction &aamp; delivery and they are available with foot or flange mounting, But in size 2.5" to 4" are provided with flange at the end of suction & delivery and they are available with foot mounting only. These pumps can be operated up to pressure of 20 kg/cm² with 5.0 LPM to 900 LPM flow capacity. These pumps are suitable for liquid up to viscosity of 1, 00,000 SSU and maximum temperature up to 200°c.

External Gear Pump | Material of Construction

Part Material For FTNX Material For FTBX
Pump Body CI/CS CI/CS
Front Cover CI/CS CI/CS
Back Cover CI/CS CI/CS
Gland Cover CI/CS CI/CS
Rotor/Stator Shaft EN-19 EN-19
Gear EN-24/EN-353 EN-24/EN-353
Needle/Bush Bearing INA/IKO [Japan] Non- Ferrous
Wear Plate Non- Ferrous Non- Ferrous
Sealing “GFO” Pack Teflon / Mech. Seal “GFO” Pack Teflon / Mech. Seal
R.V. Housing Mild Steel Mild Steel
R.V. Piston EN – 8 EN – 8
R.V. Spring Spring Steel Spring Steel
R.V. AD. Screw EN-8 EN-8
Key EN-8 EN-8
Hex - Bolt Mild Steel Mild Steel

External Gear Pump | Technical Specification

Model FTNX/FTBX Suction & Delivery Size Capacity at 1440 RPM
LPM US GPM M³/hr
050 - S ½" x ½" 05 1.3 0.3
050 - M ½" x ½" 8.3 2.2 0.5
050 - L ½" x ½" 16 04.4 1.0
100 - S 1" x 1" 25 06.6 1.5
100 - M 1" x 1" 33.3 08.8 2.0
100 - L 1" x 1" 41.6 11.0 2.5
125 - S 1¼" x 1¼" 50 13.2 3.0
125 - M 1¼" x 1¼" 60 16.6 3.6
125 - L 1¼" x 1¼" 83 22.0 5.0
150 - S 1½" x 1½" 100 26.5 6.0
150 - M 1½" x 1½" 125 33.0 7.5
150 - L 1½" x 1½" 150 39.7 9.0
200 - S 2" x 2" 166.6 44.1 10.0
200 - M 2" x 2" 200 53.0 12.0
200 - L 2" x 2" 250 66.2 15.0
250 - S 2 ½" x 2 ½" 300 79.5 18.0
250 - M 2 ½" x 2 ½" 333 83.3 20.0
250 - L 2 ½" x 2 ½" 350 92.7 21.0
300 - S 3" x 3" 400 106.0 24.0
300 - M 3" x 3" 450 119.0 27.0
300 - L 3" x 3" 600 159.0 36.0
400 - S 4" x 4" 700 185.5 42.0
400 - M 4" x 4" 800 212.0 48.0
400 - L 4" x 4" 900 238.5 54.0

External Gear Pump | Features

  • High pressure pump offered to 20 Bar.
  • Heavy duty gear pump design for continuous application.
  • Modification tooth profile enhances the tool life.
  • OptionallyInFloating gear design ensures uniform load distribution.
  • Heavy duty gear pump double helical design prevent axial load and side thrust.
  • Shorter bearing span reduces bending effect.
  • Low leakage path by design improve volumetric efficiency.

External Gear Pump | Application

  • Power plant.
  • Steel plant.
  • Cement plant.
  • Bitumen plant.
  • Petroleum industries.
  • Refineries
  • Pumping station.
  • All kind of liquid loading and unloading.
